| 最高力（Pmax）: | 410w |
| 最適の稼働電圧: | 24.82V |
| オープン回路電圧 (Voc): | 30.44V |
| モジュールの寸法: | 1750×1150×2.7mm |
| 重さ: | 5.43 kg |
| 製品保証: | 12年 |
| ハイライト: | 410W flexible solar panel,N-TOPCON solar module,IP68 waterproof solar panel |
Discover the next generation of solar innovation with our 410W flexible solar panel. Engineered with cutting-edge N-TOPCON cell technology, this lightweight and durable module delivers exceptional efficiency and reliability. Perfect for residential, commercial, and mobile applications, it features an IP68-rated junction box, impressive load resistance, and a wide operating temperature range. With a 12-year product warranty and 25-year power warranty, this panel is built to last and perform.
Enhanced Power Output: 410W maximum power ensures higher energy yield for your solar system
Advanced N-TOPCON Cells: Superior light absorption and temperature performance
Ultra-Lightweight Design: Only 5.43 kg for easy handling and installation
Weather-Resistant Construction: IP68 protection against dust and water ingress
Excellent Load Tolerance: Withstands 5400Pa snow load and 2400Pa wind pressure
Wide Temperature Operation: Performs reliably from -40°C to +85°C
Long-Term Warranty Protection: 12-year product warranty and 25-year linear power warranty

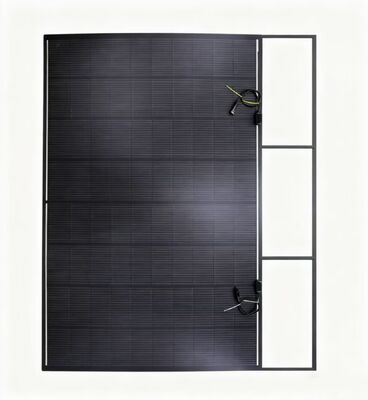

The SHFM-430-T3 410W module represents the pinnacle of solar technology innovation. Utilizing N-TOPCON cells in an optimized 8×10 configuration, it achieves outstanding conversion efficiency while maintaining excellent temperature coefficients. The panel's innovative design eliminates the need for traditional framing, reducing weight while maintaining structural integrity. With a power tolerance of 0 to +3%, you're guaranteed consistent, reliable performance in various environmental conditions.
This flexible solar panel converts sunlight into electricity through its advanced N-TOPCON cells, which feature a sophisticated passivation layer that minimizes electron recombination. The cells capture a broader spectrum of sunlight, including blue and ultraviolet wavelengths, resulting in higher energy conversion efficiency. The generated DC electricity is channeled through an IP68-rated junction box and delivered via MC4-compatible connectors, ensuring safe and reliable power transmission to your energy system.
Application Scenarios
The versatility of this flexible 120W panel opens up a wide array of applications across diverse sectors:
Building & Construction Integration: Ideal for commercial and industrial roofs with limited load-bearing capacity, where its lightweight nature eliminates structural concerns. It is also the perfect solution for curved and special architectural structures, such as arched canopies, awnings, and heritage buildings, enabling seamless solar integration without compromising design.
Transportation Infrastructure: Can be deployed on highway slopes and noise barriers, turning underutilized public infrastructure into efficient power-generating assets, contributing to smart city and greenway projects.
Agriculture & Aquaculture: Excellently suited for PV agricultural greenhouses and flower markets, where its semi-transparent properties and light weight allow for simultaneous crop growth and solar generation, reducing energy costs for climate control.
Portable & Mobile Energy Systems: Perfect for balcony PV systems (BIPV) for urban residents, and for integration onto the roofs of vehicles, buses, and train carriages. This provides auxiliary power for air conditioning, lighting, and electronic devices, enhancing energy independence for mobile applications.
Q: What makes this panel suitable for curved surfaces?
A: The flexible substrate allows bending to a certain degree, making it ideal for curved roofs and irregular surfaces.
Q: How does the temperature coefficient affect performance?
A: With a Pmax temperature coefficient of -0.26%/°C, the panel maintains better performance in high temperatures compared to conventional panels.
Q: Can I walk on the panel during installation?
A: No, the panel is not designed to withstand foot traffic. Please avoid stepping on it during installation.
Q: Is professional installation required?
A: While DIY installation is possible, we recommend professional installation to ensure optimal performance and safety.
Q: What is the expected power degradation?
A: The panel maintains at least 85% of rated power in the 25th year, with only 0.4% annual degradation after the first year.
Surface Preparation: Ensure the installation surface is clean, dry, and free from sharp objects
Mounting Method: Use appropriate adhesive or mounting tape designed for flexible panels
Electrical Safety: Always disconnect the system before performing any maintenance
Cleaning Procedure: Use soft cloth and water for cleaning; avoid abrasive materials
Regular Inspection: Check junction box and cables periodically for signs of wear
Shading Avoidance: Position the panel to minimize shading from surrounding objects
| Electrical Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 410 W |
| Optimum Voltage (Vmp) | 24.82 V |
| Optimum Current (Imp) | 16.52 A |
| Open-Circuit Voltage (Voc) | 30.44 V |
| Short-Circuit Current (Isc) | 17.49 A |
| Max System Voltage | 1000/1500 V DC |
| Fuse Rating | 25 A |
| Power Tolerance | 0 to +3% |
| Operating Temperature | -40°C to +85°C |
| Temp Coefficient (Pmax) | -0.26 %/°C |
| Temp Coefficient (Voc) | -0.24 %/°C |
| Temp Coefficient (Isc) | +0.04 %/°C |
The SHFM-430-T3 410W flexible solar panel offers an optimal balance of power output, durability, and installation flexibility. Its advanced N-TOPCON technology ensures superior performance in real-world conditions, while the lightweight design simplifies transportation and installation. Whether you're upgrading an existing system or implementing a new solar solution, this panel provides the reliability and efficiency needed for long-term energy savings. Join the renewable energy revolution with a product that combines innovative technology with practical design.
Our Advantages
We provide cutting-edge solar solutions that redefine where and how solar power can be deployed. Our core advantages are rooted in superior engineering and a deep understanding of real-world application challenges:
Ultimate Lightweight & Flexible Design: Our modules boast an exceptionally low weight of just 2.7kg/m² (approximately 30% of traditional glass modules) and an ultra-thin profile of only 2.7mm. This revolutionary form factor eliminates concerns for weight-restricted roofs and enables perfect conformity to various curved surfaces.
Rackless Installation & Superior Convenience: The flexible and lightweight nature allows for installation typically without complex metal racking systems. The modules can be directly adhered or simply fastened, significantly reducing installation complexity, labor costs, and time, offering unparalleled ease of deployment.
Proven High Reliability: The product has successfully passed multiple stringent TÜV SÜD tests, including hail impact, mechanical load, and humidity freeze tests. This ensures stable power output and long-term performance durability even in harsh environments, providing you with complete peace of mind.
We go beyond manufacturing to be your comprehensive solar energy partner. Our integrated service portfolio ensures your project is successful from concept to completion.
End-to-End Solutions: We provide tailored, end-to-end solar energy solutions designed to meet your specific energy needs and site conditions, from initial consultation to final commissioning.
Expert Roof Integration Design: Our team specializes in rooftop layout planning and integration design, ensuring optimal system performance, structural safety, and seamless aesthetics for both flat and curved surfaces.
Professional Electrical System Design: We deliver complete electrical design support, including string sizing, cable routing, and compatibility with inverters and energy storage systems, guaranteeing a safe, efficient, and code-compliant installation.
One-Stop Packaged Systems: Simplify your procurement process. We offer a one-stop-shop for all necessary components, including compatible mounting hardware, connectors, and cabling, ensuring system compatibility and reducing sourcing time and complexity.
