| 最高力（Pmax）: | 400W |
| 最適の稼働電圧: | 24.69V |
| オープン回路電圧 (Voc): | 30.35V |
| モジュールの寸法: | 1750×1150×2.7mm |
| 重さ: | 5.43 kg |
| ヒューズ評価: | 25A |
| ハイライト: | 400W flexible solar panel,N-TOPCON solar module,IP68 roof-mountable solar panel |

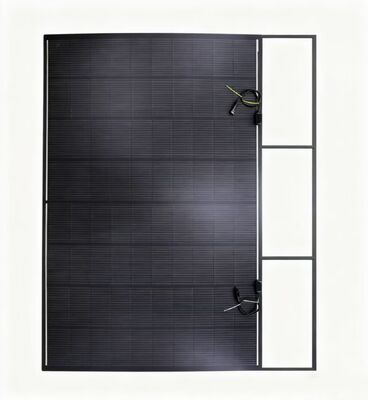

In an era where renewable energy solutions are becoming increasingly essential, the SHFM-430-T3 400W Flexible Solar Panel stands out as a groundbreaking innovation in solar technology. Engineered with state-of-the-art N-TOPCON cells and a highly adaptable design, this module redefines what is possible with solar energy harvesting. Whether you are looking to power a residential property, a commercial facility, or a mobile setup, this panel offers an unparalleled combination of efficiency, durability, and flexibility. Its lightweight construction and robust performance make it an ideal choice for both traditional and unconventional installations, ensuring that you can harness the power of the sun wherever you are.
Exceptional Efficiency: With a conversion efficiency of 21.4%, this panel maximizes energy output even in limited spaces, making it perfect for urban environments or applications where space is at a premium.
Lightweight and Flexible Design: Weighing just 5.43 kg and featuring an ultra-thin profile of 2.7 mm, this panel can be easily installed on curved, uneven, or delicate surfaces without the need for heavy mounting systems or structural modifications.
Superior Durability: Designed to withstand harsh environmental conditions, the panel features an IP68-rated junction box, ensuring complete protection against dust and water ingress. Additionally, it can endure significant mechanical loads, including snow loads up to 5400 Pa and wind loads up to 2400 Pa.
Ease of Installation: The flexible nature of the panel eliminates the need for complex scaffolding or mounting structures, significantly reducing installation time and labor costs. This makes it an economical choice for both DIY enthusiasts and professional installers.
Long-Term Reliability: Backed by a 12-year product warranty and a 25-year linear power output warranty, this panel guarantees consistent performance and peace of mind for decades to come.
The SHFM-430-T3 400W Flexible Solar Panel incorporates advanced N-TOPCON cell technology, which enhances light absorption and reduces electron recombination, resulting in higher efficiency and better performance in low-light conditions. The cells are arranged in an 8x10 configuration, optimizing the panel's energy conversion capabilities. The module's temperature coefficients are meticulously engineered to ensure stable operation across a wide temperature range, from -40°C to +85°C. This makes it suitable for installation in diverse climates, from scorching deserts to freezing mountainous regions.
At the heart of this solar panel lies the N-TOPCON cell technology, which leverages a sophisticated passivation layer to minimize energy losses and maximize photon absorption. When sunlight strikes the panel, the cells generate direct current (DC) electricity, which is then channeled through the IP68-rated junction box and output via MC4-compatible connectors. The panel's flexibility is achieved through a durable polymer substrate that replaces traditional glass and aluminum frames, allowing it to conform to various surfaces without compromising structural integrity or performance.
Application Scenarios
The versatility of this flexible 120W panel opens up a wide array of applications across diverse sectors:
Building & Construction Integration: Ideal for commercial and industrial roofs with limited load-bearing capacity, where its lightweight nature eliminates structural concerns. It is also the perfect solution for curved and special architectural structures, such as arched canopies, awnings, and heritage buildings, enabling seamless solar integration without compromising design.
Transportation Infrastructure: Can be deployed on highway slopes and noise barriers, turning underutilized public infrastructure into efficient power-generating assets, contributing to smart city and greenway projects.
Agriculture & Aquaculture: Excellently suited for PV agricultural greenhouses and flower markets, where its semi-transparent properties and light weight allow for simultaneous crop growth and solar generation, reducing energy costs for climate control.
Portable & Mobile Energy Systems: Perfect for balcony PV systems (BIPV) for urban residents, and for integration onto the roofs of vehicles, buses, and train carriages. This provides auxiliary power for air conditioning, lighting, and electronic devices, enhancing energy independence for mobile applications.
Customizable Dimensions: The panel can be tailored to meet specific project requirements, reducing material waste and optimizing shipping costs.
Comprehensive Certifications: Complies with international safety and quality standards, ensuring reliability and performance under various conditions.
Eco-Friendly Design: By harnessing renewable solar energy, this panel helps reduce greenhouse gas emissions and dependence on fossil fuels.
Low Maintenance Requirements: The frameless design minimizes dirt accumulation and simplifies cleaning, reducing long-term maintenance efforts and costs.
Adaptability: Its flexible nature allows for innovative applications, such as integration into vehicles, marine vessels, or even wearable energy systems.
Q: Can this panel be installed on a curved surface?
A: Yes, the panel's flexible design allows it to conform to curved or irregular surfaces, making it ideal for a wide range of applications.
Q: What is the expected lifespan of the panel?
A: With proper installation and maintenance, the panel is designed to last for over 25 years, with a linear power warranty ensuring at least 85% output in the 25th year.
Q: Is the panel resistant to hail and impact?
A: While the panel is durable, it is not designed to withstand direct impact from large hailstones or heavy objects. We recommend installing it in locations where such risks are minimized.
Q: Can the output cables be customized?
A: Yes, the standard 500 mm cables can be customized in length to suit specific installation needs. Please contact our support team for more details.
Q: How does the panel perform in shaded conditions?
A: The panel's N-TOPCON cells are engineered to perform efficiently even in partial shade, though we recommend avoiding shaded areas for optimal performance.
Installation Tips:
Ensure the installation surface is clean, dry, and free of sharp objects that could damage the panel.
Use appropriate adhesives or mounting systems designed for flexible panels to secure the module in place.
Avoid bending the panel beyond its recommended curvature to prevent micro-cracks or performance issues.
Maintenance Recommendations:
Periodically clean the panel surface with a soft cloth and water to remove dust, dirt, or debris.
Inspect the junction box and cables regularly for signs of wear or damage.
For optimal performance, avoid installations in areas prone to heavy shading or debris accumulation.
By choosing the SHFM-430-T3 400W Flexible Solar Panel, you are not only investing in a reliable energy solution but also contributing to a sustainable future. Solar energy is one of the cleanest and most abundant renewable resources available, and this panel is designed to maximize its potential. With a long lifespan and minimal degradation, it offers an eco-friendly alternative to conventional energy sources, helping to reduce carbon emissions and promote environmental stewardship.
Our Advantages
We provide cutting-edge solar solutions that redefine where and how solar power can be deployed. Our core advantages are rooted in superior engineering and a deep understanding of real-world application challenges:
Ultimate Lightweight & Flexible Design: Our modules boast an exceptionally low weight of just 2.7kg/m² (approximately 30% of traditional glass modules) and an ultra-thin profile of only 2.7mm. This revolutionary form factor eliminates concerns for weight-restricted roofs and enables perfect conformity to various curved surfaces.
Rackless Installation & Superior Convenience: The flexible and lightweight nature allows for installation typically without complex metal racking systems. The modules can be directly adhered or simply fastened, significantly reducing installation complexity, labor costs, and time, offering unparalleled ease of deployment.
Proven High Reliability: The product has successfully passed multiple stringent TÜV SÜD tests, including hail impact, mechanical load, and humidity freeze tests. This ensures stable power output and long-term performance durability even in harsh environments, providing you with complete peace of mind.
We go beyond manufacturing to be your comprehensive solar energy partner. Our integrated service portfolio ensures your project is successful from concept to completion.
End-to-End Solutions: We provide tailored, end-to-end solar energy solutions designed to meet your specific energy needs and site conditions, from initial consultation to final commissioning.
Expert Roof Integration Design: Our team specializes in rooftop layout planning and integration design, ensuring optimal system performance, structural safety, and seamless aesthetics for both flat and curved surfaces.
Professional Electrical System Design: We deliver complete electrical design support, including string sizing, cable routing, and compatibility with inverters and energy storage systems, guaranteeing a safe, efficient, and code-compliant installation.
One-Stop Packaged Systems: Simplify your procurement process. We offer a one-stop-shop for all necessary components, including compatible mounting hardware, connectors, and cabling, ensuring system compatibility and reducing sourcing time and complexity.
