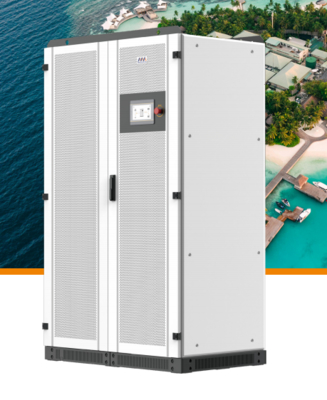

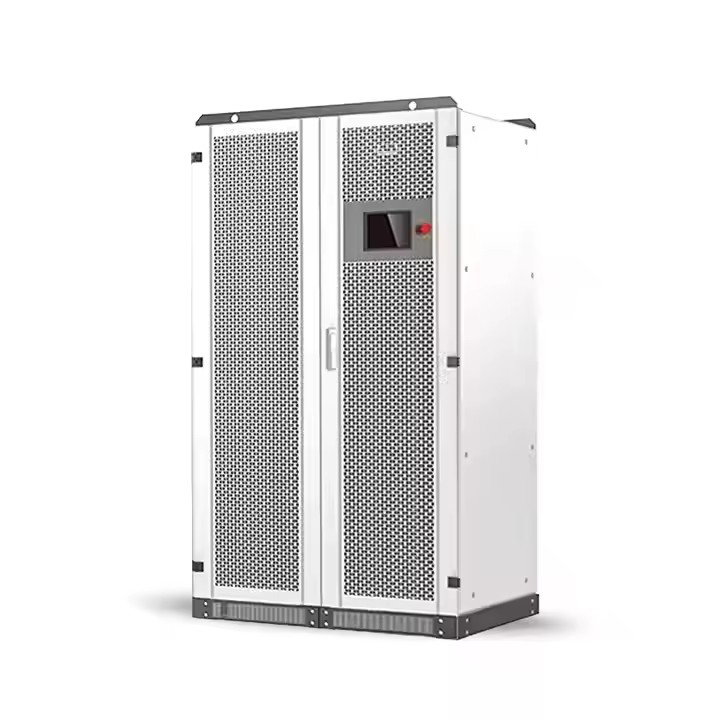

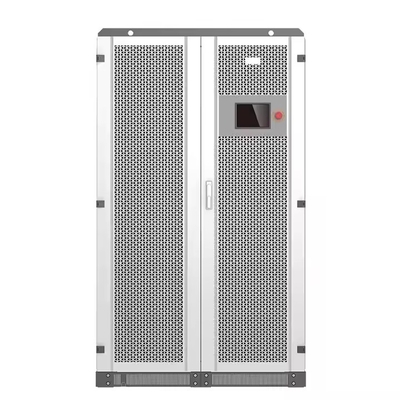

50kW Three-Phase Hybrid Inverter for Industrial Microgrids
  • 50kW Three-Phase Hybrid Inverter for Industrial Microgrids
  • 50kW Three-Phase Hybrid Inverter for Industrial Microgrids
  • 50kW Three-Phase Hybrid Inverter for Industrial Microgrids
  • 50kW Three-Phase Hybrid Inverter for Industrial Microgrids

50kW Three-Phase Hybrid Inverter for Industrial Microgrids

Max. Power (kVA): 33 kVA
Rated Power (kW): 30 kW
Voltage Options: 208V / 220V / 240V (Wye)
Current (A): 83A (208V) / 79A (220V) / 72A (240V)
Frequency: 50/60 Hz (±5 Hz adjustable)
Dimensions (W×D×H): 800×800×1,900 mm
ハイライト:

50kW hybrid inverter for microgrids

,

three-phase industrial inverter with warranty

,

commercial hybrid inverter for industrial use

ダウンロード

製品詳細

ブランド名:
sangsolar
証明:
EN 62109-1/-2
Model Number:
MPS0050
Minimum Order Quantity:
Pallet
価格:
Negotiated
Packaging Details:
Carton on Pallet
Delivery Time:
10-30days
Payment Terms:
TT/LC/Alibabashop
Supply Ability:
2GW/Year
ハイライト:

50kW hybrid inverter for microgrids

,

three-phase industrial inverter with warranty

,

commercial hybrid inverter for industrial use

製品説明

1. Product Overview

This 50kW industrial hybrid inverter is engineered for demanding off-grid and hybrid power applications, delivering reliable three-phase power for commercial and industrial use. Combining high-efficiency solar conversion, flexible battery integration, and smart grid interaction, it's the ideal solution for mines, island communities, and large agricultural operations requiring uninterrupted power supply.



2. Key Features & Technical Advantages

2.1 Industrial-Grade Power Output

  • 50kW continuous power (55kVA peak) for heavy loads

  • Three-phase 208V/220V/240V Wye output configuration

  • 110% continuous overload capacity for demanding startups

  • <3% THDi for clean grid synchronization

  • Adjustable 0.8 leading/lagging power factor



2.2 Optimized Solar Harvesting

  • 1-2 MPPT trackers with independent optimization

  • 60kW standard PV input (expandable to 120kW)

  • Ultra-wide 250-850V MPPT voltage range

  • 1,000V max PV input for high-voltage string configurations

  • >98% conversion efficiency under real-world conditions



2.3 Advanced Battery Integration

  • 320-850V battery voltage range for high-voltage systems

  • 60kW charging power (120kW max)

  • Supports lithium-ion/LFP/lead-acid/flow batteries

  • Configurable charge/discharge curves for battery longevity

  • CAN/RS485 communication for BMS integration



2.4 Smart Grid & Generator Interaction

  • Seamless grid-tie/off-grid/hybrid operation modes

  • Automatic generator start/stop synchronization

  • Frequency shift protection for island grids

  • Load priority management for critical circuits



2.5 Rugged Industrial Design

  • -30°C to +55°C operating temperature range

  • IP20 protected electrical components

  • <70dB quiet operation

  • Forced air cooling with temperature control

  • 5,000m altitude rating (with derating above 3,000m)



3. Technical Specifications

Category Specifications
AC Output
Rated Power 50 kW (55kVA max)
Voltage Options 208V/220V/240V (Wye)
Frequency 50/60 Hz (±5 Hz adjustable)
PV Input
Max. PV Voltage 1,000V
MPPT Trackers 1-2
Max. PV Power 60/120 kW
Battery
Voltage Range 320-850V
Charging Power 60/120 kW
Physical Data
Dimensions 800×800×1,900 mm
Weight 720-750 kg
Certifications EN 62109, IEC 61727, VDE 4105, NRS 097-2-1



4. Industrial Applications

4.1 Mining Operations

  • Underground/remote mine power

  • Ore processing equipment

  • Ventilation systems

  • Camp power solutions



4.2 Island Microgrids

  • Resort/hotel power systems

  • Fishing community electrification

  • Desalination plant support

  • Emergency backup systems



4.3 Agricultural Facilities

  • Large-scale irrigation systems

  • Cold storage warehouses

  • Livestock processing plants

  • Greenhouse climate control



4.4 Industrial Backup

  • Manufacturing plants

  • Telecom infrastructure

  • Water treatment facilities

  • Data center backup



5. Intelligent System Features

5.1 Parallel Operation

  • Unlimited parallel units for capacity expansion

  • Automatic load sharing between inverters

  • Phase balancing for uneven loads

  • Redundant operation for critical systems



5.2 Remote Monitoring & Control

  • 7" LCD touchscreen interface

  • TCP/IP/RS485/CAN communication ports

  • Cloud monitoring capability

  • Firmware upgradable for future features

  • Alarm/notification system for faults



5.3 Energy Management

  • Time-of-use scheduling

  • Generator run-time optimization

  • Peak shaving capability

  • Load shedding priorities



6. Frequently Asked Questions

Q: What maintenance is required?

A: Minimal maintenance needed - just periodic air filter cleaning and visual inspections. The rugged design ensures long service intervals.

Q: Can it power sensitive medical equipment?

A: Yes, the <3% THDi and stable voltage regulation make it suitable for medical applications when properly configured.

Q: How does it handle multiple energy sources?

A: Automatically prioritizes solar → battery → generator based on programmable rules and real-time conditions.

Q: What monitoring options are available?

A: Choose from local display, web portal, mobile app, or integration with SCADA/EMS systems.

Q: Is technical support available?

A: Comprehensive support includes installation guidance, 24/7 troubleshooting, and firmware updates.



7. Installation & Compliance

7.1 Installation Requirements

  • Professional installation mandatory

  • Adequate ventilation space

  • Proper cable sizing for high currents

  • Lightning protection recommended

  • Secure mounting for seismic areas



7.2 Safety Certifications

  • EU: EN 62109, EN 62477-1

  • International: IEC 61727, IEC 62116

  • Africa: NRS 097-2-1

  • Australia: AS/NZS 4417.1



8. Why Professionals Choose This Inverter

  1. Industrial Reliability - Designed for 24/7 continuous operation

  2. Future-Proof - Scalable as energy needs grow

  3. Fuel Savings - Reduces generator runtime by 60-80%

  4. Smart Integration - Works with existing power infrastructure

  5. Global Compliance - Meets international standards
