| Max. Power (kVA): | 33 kVA |
| Rated Power (kW): | 30 kW |
| Voltage Options: | 208V / 220V / 240V (Wye) |
| Current (A): | 83A (208V) / 79A (220V) / 72A (240V) |
| Frequency: | 50/60 Hz (±5 Hz adjustable) |
| Dimensions (W×D×H): | 800×800×1,900 mm |
| ハイライト: | 30kW hybrid solar inverter,dual MPPT solar inverter,off-grid solar inverter 208V |
Supports 208V/220V/240V Wye output
Automatic voltage adjustment for stable operation
Compatible with diverse grid and generator setups
Dual MPPT trackers (36kW standard, 72kW max)
1,000V max PV input with 250-850V MPPT range
98% conversion efficiency, even in partial shading
250-850V battery compatibility (lithium/lead-acid)
36kW charging power (expandable to 72kW)
Smart BMS communication via CAN/RS485
-30°C to +55°C operating range
IP20 protection against dust/moisture
<70dB noise level, air-cooled
7" LCD touchscreen for real-time data
Remote management via RS485/CAN/TCP/IP

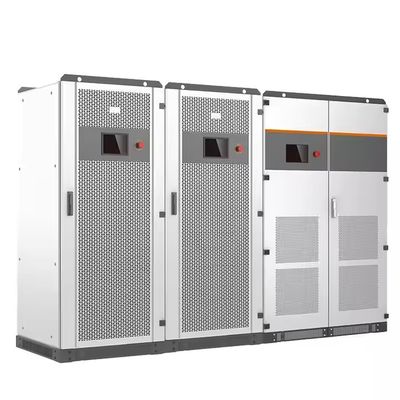

Parallel operation for scalable capacity
| Category | Specifications |
|---|---|
| AC Output (On-Grid) | |
| Max. Power | 33 kVA |
| Rated Power | 30 kW |
| Voltage Options | 208V/220V/240V (Wye) |
| Frequency | 50/60 Hz (±5 Hz adjustable) |
| PV Input | |
| Max. PV Voltage | 1,000V |
| MPPT Trackers | 2 |
| Max. PV Power | 36/72 kW |
| Battery | |
| Voltage Range | 250-850V |
| Charging Power | 36/72 kW |
| Physical Data | |
| Dimensions (W×D×H) | 800×800×1,900 mm |
| Weight | 620-650 kg |
| Certifications | EN 62109, IEC 61727, VDE 4105, AS/NZS 4417.1 |
✔ Off-grid villages – Reliable power for remote communities
✔ Farms & agriculture – Irrigation, livestock operations
✔ Telecom towers – Continuous power in unconnected areas
✔ Backup power systems – Hospitals, emergency services
A: Yes, it operates in solar+battery mode without grid connection.
A: Supports unlimited parallel units for expanded capacity.
A: Compatible with lithium-ion, lead-acid, and flow batteries (250-850V).
A: Yes, automatic generator start/sync is supported.
⚠ Professional installation required (high-voltage components)
⚠ Certified components recommended (solar/battery)
✔ Meets global standards: IEC, EN, VDE, AS/NZS
✅ All-in-one solution – Solar, battery, and grid/generator integration
✅ Future-proof – Scalable for growing energy demands
✅ Industrial durability – Built for 24/7 operation
✅ Smart energy management – Optimizes power usage
